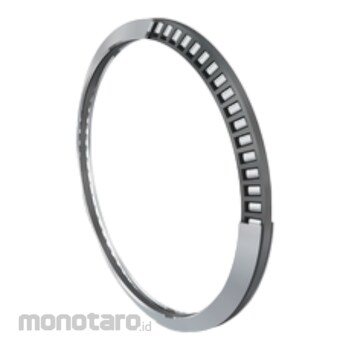

INA Axial Conical Thrust Cage Needle Roller Bearing AXS Type
#Grup produk P110024963
Spesifikasi
| Height (H) (mm) | 3 |
|---|---|
| Tolerance Height Max. (max) (mm) | -0.24 |
| Tolerance Height Min. (min) (mm) | -0.44 |
| Contact-Angle (α) (°) | 60 |
| Basic Dynamic Load Rating, Axial (C0a) (N) | 7800 |
| Basic Dynamic Load Rating, Axial (Ca) (N) | 3400 |
| Bore Diameter (D) (mm) | 12 |
| Centering In The Housing (Da) (mm) | 20.2 |
| Centering On The Shaft (da) (mm) | 12.2 |
| Centering Tolerance In The Housing Max. (max) (mm) | -0.05 |
| Centering Tolerance In The Housing Min. (min) (mm) | -0.15 |
| Centering Tolerance On The Shaft Max. (max) (mm) | 0.15 |
| Centering Tolerance On The Shaft Min. (min) (mm) | 0.05 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Outer Diameter d (mm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Axial angular contact roller bearing
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
