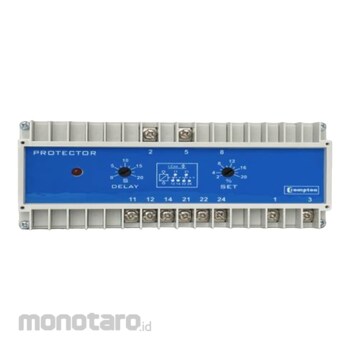

Crompton Reverse Power Relay
#Grup produk P110022248
Spesifikasi
| Burden (VA) | Voltage: Max. 3, Current: Max. 2 |
|---|---|
| Current Overload | 2 x Rating Continuously, 10 x Rating for 3 Seconds |
| Relay Contact Rating | AC: 240V 5A, Non Inductive DC: 24V 5A Resistive |
| Relay Mechanical Life | 0.2 Milion Operations at Rated Loads |
| Time Delay (s) | 0 to 20 |
| Dimensions WxHxD (mm) | 150x70x112 |
| Enclosure Integrity | IP50 |
| Enclosure Style | DIN-rail with Wall Mounting Facility |
| Material | Flame Retardant Polycarbonate / ABS |
| Monitoring Range Capacitive | Power Factor: 0.5 inductive/unity/0.2, Current: 20 to 100% of nominal input |
| Operating Temperature (°C) | 0 to +60 (0 to +40 for UL models) |
| Relay Reset | Automatic |
| Set Point Repeatability | >0.5% of Full Span |
| Storage Temperature (°C) | -20 to +70 |
| System Frequency (Hz) | 50, 60 or 400 |
| Voltage Overload | 1.2 x Rating Continuously, 1.5 x Rating for 10seconds |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Three-phase, three or four-wire- Adjustable set point
- Adjustable time delay
- Internal differential
- LED trip indication
- Double-pole relay contacts
- Automatic reset
Use
Application :- Marine panels
- Switchgear
- Distribution systems
- Generator sets
- Control panels
- Process control
- Motor protection
- Transformers
- Overload protection
