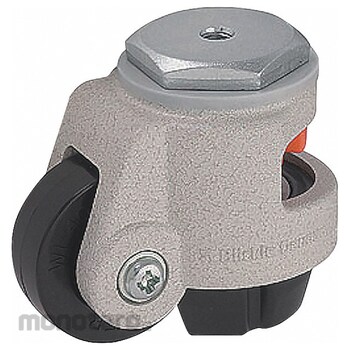

Non Brand Leveling Threaded Stem Caster
#Grup produk P110008239
Spesifikasi
| UNSPSC | 31162701 |
|---|---|
| Adjustment Style | Nut |
| Caster Brake Type | Side Thumbscrew Brake |
| Caster Frame Material | Aluminium |
| Caster Mounting Type | Bolt Hole |
| Caster Stem Type | Threaded Bolt Hole |
| Caster Sub-Type | Swivel |
| Core Color | Black |
| Frame Finish | Powder Coated |
| Load Rating (lbs) | 550 |
| Maximum Leveling Height (inch) | 3 35/64 |
| Mounting Height (inch) | 3 5/16 |
| Non-marking | Yes |
| Number of Wheels | 1 |
| Operating Temperature Range (°F) | -20 to 180 |
| Overall Height (inch) | 3 5/16 |
| Standards | DIN EN; ICWM; ISO 9001 |
| Swivel Raceway Type | Single Ball |
| Thread Size | M12 |
| Wheel Bearing Type | Plain |
| Wheel Core Material | Nylon |
| Wheel Diameter (inch) | 2 |
| Wheel Tread Material | Nylon |
| Wheel Width (inch) | 13/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Leveling threaded stem casters are installed on furniture or equipment that will be frequently moved short distances but must be kept stationary when in use, such as vending machines, retail displays, and desks. They help users save time when reconfiguring floor plans. Each caster has a threaded female fitting and can be secured to equipment using a threaded rod or bolt. The caster's leveling pad can be raised to allow the caster to roll when the equipment needs to be moved or repositioned, and the pad can be lowered to stop the caster from rolling and keep the equipment stationary. The pad's height can be adjusted to level the equipment.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Leveling Threaded Stem Caster Swivel Caster with Leveling Pad 550 lb Load Rating 300 to 999 lb 2 in Wheel Dia 13/16 in Wheel Width Nylon Wheel/Tread Material 3 5/16 in Mounting Height Plain Wheel Bearing Type Caster Stem Size M12 x 15 Threaded Bolt Hole Caster Stem Type Aluminum Caster Frame Material Powder Coated Frame Finish Yes Non-Marking 1 Number of WheelsUlasan Produk
