High resolution imported color camera
By availing the auxiliary light adjusting function of the software, the user knows
whether the light is saturated.
The laser indicator can quickly locate the target workpiece, which is suitable for
measuring sophisticated workpiece.
Auxiliary height measuring can be achieved.
inchTinch groove type worktable can house various fixtures
The resolution of the linear scale is 0.5um
Foot switch and software facilitate operation of the machine

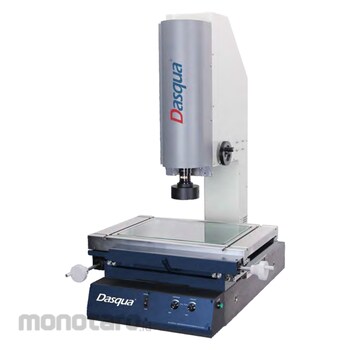

Dasqua Vision Machine System Manual
#Grup produk P109995975
Spesifikasi
| Metal Worktable Size (mm) | 500x330 |
|---|---|
| Glass Worktable Size (mm) | 350x250 |
| Travel (mm) | 300x200 |
| X,Y, Z Axis Resolution (µm) | 0.5 |
| Accuracy (µm) | E1XY=(2.5+L/100) |
| Z Axis Travel (mm) | 200 |
| Camera (inch) | 1/3 color CCD camera |
| Field View (mm) | 8.1-1.3 |
| Power (V/Hz) | (AC 100-240)/(50/60) |
| Spare Parts | 1.0X lens cone (standard), Crosshair, DC3000 digital display, Renishaw MCP |
| Total Magnification | 26.6X-171X |
| Zoom Lens | 0.7X-4.5X |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
" - Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website"
Use
APPLICATIONWidely used in the field of electronics, machinery, instrument and plastic,
G series video measuring system is used in two dimension measurin
