Non Brand Pin & Sleeve Receptacle
#Grup produk P109992190
Sebelum PPN:
Rp4.499.900 - Rp7.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121406 |
|---|---|
| Cap Type | Spring-Loaded Cap |
| Connection Orientation | Straight |
| Flange type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| IP Rating | IP67 |
| Market | Industrial |
| Number of Gangs | 1 |
| Number of Poles | 3 |
| Number of wires | 4 |
| Resistance Properties | Chemical Resistant; Corrosion Resistant; Abrasion Resistant; Shatter and Crack Resistant; Warp Resistant; Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | IEC |
| Ul 94 Flammability Rating | HB |
| Wire Connection Type | Screw Terminals |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

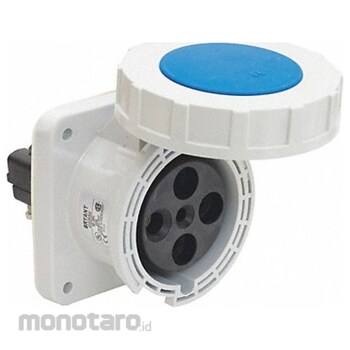

These pin and sleeve receptacles have watertight constructions that protect their internal components from liquids, debris, and dust. They provide safe electrical connections when mated with compatible watertight devices in outdoor and wet applications like food processing plants, beverage manufacturing, agriculture machinery, and chemical processing plants.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Watertight Pin and Sleeve Receptacle Current Rating 100 A Flange Type Flanged Grounding Style IEC IP Rating IP67 NEMA Enclosure Rating Not Rated Number of Gangs 1 Number of Poles 3 Number of Wires 4 Phase Three Shrouded Yes Voltage Rating 250V Cap Type Spring-Loaded Cap Connection Orientation Straight Grounding Grounded Horsepower Rating 10 hp Housing Color Blue Housing Material Composite Market Industrial Maximum Wire Size 1/0 AWG Minimum Wire Size 3 AWGUlasan Produk
