Non Brand Extension Tap
#Grup produk P109988054
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 55% Thread Drill Size (mm) | 11.3 |
| 65% Thread Drill Size (mm) | 11 |
| 75% Thread Drill Size (inch) | 27/64 |
| Class of Fit | 3B |
| Extended Neck | Yes |
| Extended Shank | Yes |
| Material Grade - Machining | Common Special |
| Measurement System | Fractional Inch |
| Number of Flutes | 3 |
| Overall Length (inch) | 6 |
| Shank Diameter (inch) | 23/64 |
| Shank Length (inch) | 4 21/64 |
| Spiral Direction | Neutral |
| Square Size (inch) | 0.275 |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Finish | Bright (Uncoated) |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Extension |
| Tap Thread Size | 1/2\"-13 |
| Tap Type | Spiral Point |
| Thread Direction | Right Hand |
| Thread Length (inch) | 1 21/32 |
| Thread Limit | H3 |
| Thread Size (inch) | 1/2-13 |
| Thread Standard | UNC |
| Thread per Inch | 13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

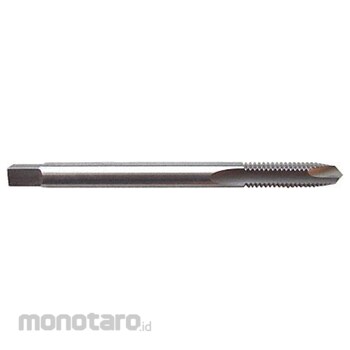

The bright finish on these taps provides a smooth, polished surface. High-speed steel taps provide good wear resistance in general purpose tapping applications in a range of materials. Spiral-point taps have straight flutes with a spiral point that pushes chips in front of the tap as it moves into a hole and out the other side, eventually forcing the chips out of the hole. They are used for threading through holes.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Extension Tap Thread Size 1/2 In.-13 UNC Overall Length 6 in High Speed Steel Bright (Uncoated) Right Hand 13Ulasan Produk
