Non Brand Dielectric Pipe Nipple
#Grup produk P109984951
Spesifikasi
| UNSPSC | 40142318 |
|---|---|
| Application | Water |
| Finish/Coating | Zinc-Plated |
| Fitting Compatibility | Schedule 40 |
| Liner Material | Polyethylene |
| Maximum Operating Pressure (psi) | 150 (@ 200°F) |
| Maximum Operating Temperature (°F) | 230 |
| Metal Pipe Construction | Welded |
| Minimum Operating Temperature (°F) | 32 |
| Pipe Material | Steel |
| Pipe Weld Type | Electric Resistance Weld |
| Schedule | Schedule 40 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ANSI B1.20.1ASTM A53 |
| Thread Configuration | Threaded on Both Ends |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

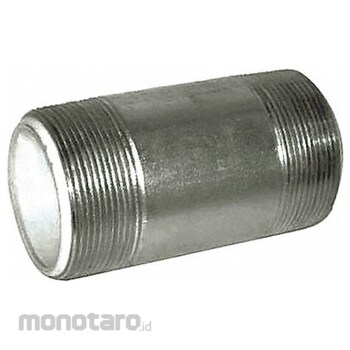

Dielectric pipe nipples are available in lengths 12" and shorter. These nipples create a link between two pipes of dissimilar materials.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Item Dielectric Nipple Application Water Finish/Coating Zinc-Plated Fitting Compatibility Schedule 40 Liner Material Polyethylene Maximum Operating Pressure 150 psi @ 200 Degrees F Maximum Operating Temperature 230 Degrees F Metal Pipe Construction Welded Minimum Operating Temperature 32 Degrees F Nominal Pipe Size 1 in Outside Diameter 1 63/200 in Overall Length 2 1/2 in Pipe Material Steel Pipe Weld Type Electric Resistance Weld Schedule Schedule 40Ulasan Produk
