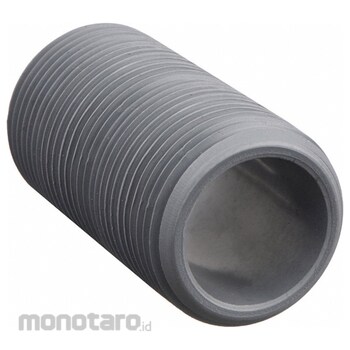

Non Brand CPVC Pipe & Pipe Nipple
#Grup produk P109984456
Spesifikasi
| UNSPSC | 40142318 |
|---|---|
| Application | Non-Potable Water; Potable Water |
| Color | Gray |
| Fitting Compatibility | Schedule 80 |
| Material | CPVC |
| Material Trade Name | ChlorFIT |
| Maximum Operating Pressure (psi) | 315 (@ 73°F) |
| Maximum Operating Temperature (°F) | 210 |
| Minimum Operating Temperature (°F) | 32 |
| Nominal Pipe Size (inch) | 1 |
| Outside Diameter (inch) | 1 63/200 |
| Overall Length (inch) | 1 1/2 |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASTM D1784; ASTM F439; NSF 14; NSF 61 |
| Thread Configuration | Fully Threaded |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Schedule 80 pipe nipples have thicker walls than Schedule 40, but not as thick as Schedule 160. Fully threaded pipe includes threads on the pipe's exterior from end to end. These connections use PTFE tape to secure seal. Medium-pressure (300-999 psi) pipe nipples connect with fittings.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Nipple Application Non-Potable Water Potable Water Color Gray Fitting Compatibility Schedule 80 Gravity Flow No Material CPVC Material Trade Name ChlorFIT Maximum Operating Pressure 425 psi @ 73 Degrees F Maximum Operating Temperature 210 Degrees F Minimum Operating Temperature 32 Degrees F Nominal Pipe Size 1/2 in Outside Diameter 21/25 in Overall Length 1 13/100 in Schedule Schedule 80 Side A Connection Type Threaded Side A Gender Male Side A Thread Type NPTUlasan Produk
