Non Brand Chemical & Oil-Resistant Viton Flange Gasket
#Grup produk P109982777
Spesifikasi
| UNSPSC | 31181502 |
|---|---|
| Backing Type | Plain |
| Bolt Circle Diameter (inch) | 4 3/4 |
| Bolt Hole Diameter (inch) | 3/4 |
| Color | Black |
| For Flange ANSI Class | 150 |
| For Pipe Size (inch) | 2 |
| Gasket Material | FKM |
| Gasket Type | Full-Face Gasket |
| Inside Diameter (inch) | 2 3/8 |
| Maximum Operating Pressure (psi) | 150 |
| Maximum Operating Temperature (°F) | 450 |
| Metal Detectable | No |
| Minimum Operating Temperature (°F) | -20 |
| Number of bolt holes | 4 |
| Outside Diameter (inch) | 6 |
| Resistance Properties | Chemical-Resistant; Heat-Resistant; Oil-Resistant |
| Standards | ASME B16.21 |
| Thickness (inch) | 1/16 |
| X-Ray Detectable | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

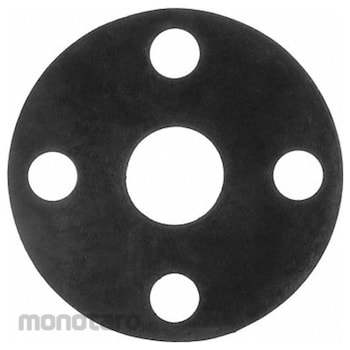

Viton full-face gaskets cover the entire surface area of the flange and include holes to insert flange bolts and ease alignment. The gasket extends to the outside diameter of the flange which prevents dirt and contaminants from entering the joint. These gaskets are typically used with flat-face (FF) flange fittings so that the mating flange components fit flush against the gasket. Full-face gaskets require the joint to be disassembled to install.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Full Face Flange Gasket Gasket Material FKM Insert Material None For Pipe Size 2 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 2 3/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 450 Degrees F Outside Diameter 6 in Thickness 1/16 in Number of Bolt Holes 4 Bolt Hole Diameter 3/4 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not RatedUlasan Produk
