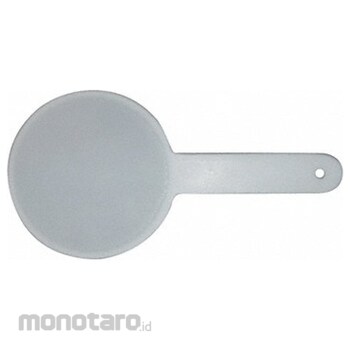

Non Brand Blocking Paddle Gasket
#Grup produk P109981194
Sebelum PPN:
Rp1.399.900 - Rp6.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31181502 |
|---|---|
| Color | White |
| For Flange ANSI Class | 150 |
| Gasket Material | PTFE |
| Maximum Operating Pressure (psi) | 150 |
| Maximum Operating Temperature (°F) | 500 |
| Minimum Operating Temperature (°F) | -400 |
| Reinforced | Yes |
| Standards | ASME B16.21; ASME/ANSI Pressure Class-150 LB |
| Thickness (inch) | 0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Instrumentation pipe is precision machined and threaded on both connection ends for leak-free connections between fittings and instruments. Pipe's exterior includes threading on both connection ends. These connections use PTFE tape to secure seal. High-pressure (1000-3000 psi) pipe nipples connect with fittings.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Paddle Gasket Gasket Material PTFE For Pipe Size 1 in Outside Diameter 2 5/8 in Thickness 0.13 in For Flange ANSI Class 150 Minimum Operating Temperature -400 Degrees F Maximum Operating Temperature 500 Degrees F Maximum Operating Pressure 150 psi Standards ASME B16.21 ASME/ANSI Pressure Class-150 LB Color White Reinforced Yes System of Measurement InchUlasan Produk
