Non Brand One-Hole Compression Lug
#Grup produk P109978613
Spesifikasi
| UNSPSC | 39121405 |
|---|---|
| Barrel Inner Diameter (inch) | 0.88 |
| Barrel Outer Diameter (inch) | 1.1 |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Color Code | Brown |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Current (A) | 620 |
| Die Code | 87 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum (kcmil) | 500 |
| For Stud Size (inch) | 1/2 |
| For Wire Type | Stranded |
| Hole Center to End (inch) | 0.5 |
| Hole Size (inch) | 0.53 |
| Material | Copper |
| Maximum Operating Temperature (°F) | 300 |
| Maximum Voltage (V) | 600 (AC) |
| Maximum Wire Size (kcmil) | 500 |
| Number of Holes | 1 |
| Overall Length (inch) | 4.2 |
| Overall Width (inch) | 1.61 |
| RohS Compliant | Yes |
| Seam Style | Seamless |
| Standards | UL Listed |
| Strip Length (inch) | 2 1/2 |
| Stud Size (inch) | 1/2 |
| Termination Style | Crimp |
| Tongue Length (inch) | 1.25 |
| Tongue Style | Standard |
| Tongue Thickness (inch) | 0.22 |
| Tongue Width (inch) | 1.61 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

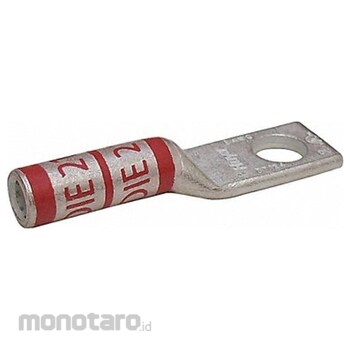

One-hole compression lugs secure onto a stud or bolt to provide connections between power or ground sources and connection points.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
One-Hole Lug Compression Connector Barrel Size Long Color Code Red Die Code 21 Tongue Angle Straight Tongue Width 0.42 in For Conductor Material Copper For Stud Size #10 For Stranded Copper Wire Size - Minimum 8 AWG For Stranded Copper Wire Size - Maximum 8 AWG Inspection Hole No Material Copper Maximum Operating Temperature 300 Degrees F Maximum Voltage 600 V AC Termination Style Crimp Seam Style Seamless Standards UL Listed Number of Holes 1 RoHS Compliant YesUlasan Produk
