Non Brand Low Pressure Gauge
#Grup produk P109976794
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy Scale | Full Scale |
| Application | Pressure Detection |
| Case Color | Black |
| Case Material | Steel |
| Dial Color | White |
| Freeze Resistant Movement | No |
| Gauge Application | For Inert Gases |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Copper |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Nominal Dial Size (inch) | 2 1/2 |
| Operating Temperature Range Ambient (°F) | -40 to 160 |
| Panel Mountable | No |
| Pressure Gauge Type | Low Pressure Gauge |
| Pressure Range Type | Pressure |
| Process Connection | 1/4 in NPT Male |
| Process Connection Gender | Male |
| Process Connection Size (inch) | 1/4 |
| Process Connection Type | NPT |
| Scale Type | Single |
| Sensor Material | Copper Alloy |
| Sensor Type | Diaphragm |
| Socket Material | Copper Alloy HPb59-1 |
| Vibration Resistance | None |
| Wetted Parts Material | Copper Alloy |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

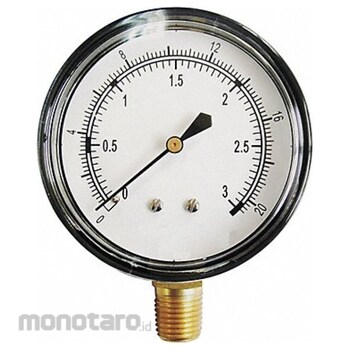

These low-pressure dial gauges are used to measure inert or nonexplosive gases. They are chemical- and corrosion-resistant.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
G3997 Pressure Gauge Gauge Type Low Pressure Diaphragm Dial Size 2 1/2 in Range 0 to 3 psi Connection Size 1/4 in NPT Connection Location Lower Smallest Graduation 0.05 psi. Accuracy +/-1.5 Percent Case Material Steel Case Color Black Socket Material Copper Alloy HPb59-1 Tube Material Copper Alloy QSn4-0.3 Lens Material Polycarbonate Ring Material None Operating Temp Range -40 to 160 Degrees F For Use With Non-Explosive Gas That Do Not Crystalize And Corrode Copper Alloy Series YE65Ulasan Produk
