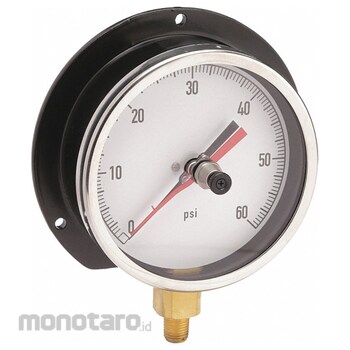

Non Brand Industrial & Process Panel-Mount Pressure Gauge
#Grup produk P109974893
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±0.5% |
| Accuracy Scale | Full Scale |
| Application | Process Industries |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Material | Aluminium |
| Compatible Process Media | Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy |
| Dial Color | White |
| Freeze Resistant Movement | No |
| Gauge Case Material | Cast Aluminium |
| Gauge Mounting Type | Back Flange |
| Gauge Wetted Parts | Brass/ Bronze |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Mounting Type | Surface |
| Nominal Dial Size (inch) | 4 1/2 |
| Non-Sparking | No |
| Operating Temperature Range Ambient (°F) | -40 to 140 |
| Panel Mountable | Yes |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range (psi) | 0 to 60 |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 60 |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Units | psi |
| Process Connection | 1/4 in NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 |
| Process Connection Type | NPT |
| Scale Type | Single |
| Sensor Material | Bronze |
| Socket Material | Brass |
| Standards | ASME |
| Vibration Resistance | None |
| Wetted Parts Material | Brass/Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These panel-mount gauges have non-ferrous brass/bronze wetted parts and a threaded connection that threads into the process, pipe, or tank; the back flange or ring mounts to the panel. Also referred to as surface-mount gauges, their back flange secures them to the surface.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
K4532 Panel-Mount Pressure Gauge Gauge Connection Location Bottom Gauge Connection Type MNPT Gauge Connection Size 1/4 in 0 to 60 psi Gauge Accuracy +/-0.50 Percent Basic Gauge Case Material Aluminum Basic Gauge Wetted Parts Brass / Bronze Basic Gauge Lens Material Plastic Case Material Cast Aluminum Case Color Black Socket Material Brass Tube Material Bronze Window PCUlasan Produk
