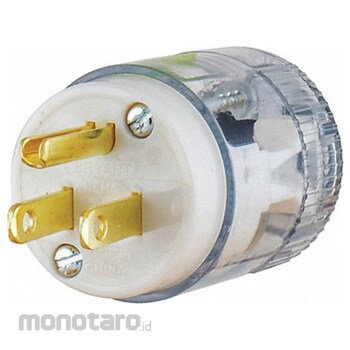

Non Brand Hospital-Grade Straight-Blade Plug
#Grup produk P109974556
Spesifikasi
| UNSPSC | 39121402 |
|---|---|
| Body Length (inch) | 2.18 |
| Connection Orientation | Straight |
| Current Rating (A) | 20 |
| For Maximum Cable Diameter (inch) | 0.655 |
| For Minimum Cable Diameter (inch) | 0.245 |
| Grade | Hospital Grade |
| Horsepower Rating (hp) | 1 |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Insulation Material | Thermoplastic |
| NEMA Plug Configuration | 5-20P |
| Number of Blades | 3 |
| Number of Poles | 2 |
| Outside Diameter (inch) | 1.52 |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Impact Resistant |
| Standards | CSA Certified; UL Listed |
| Voltage Rating (V) | 125 (AC) |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs have terminations with screws that tighten down on conductors to secure and disconnect them. They make inline connections with receptacles and connectors to transfer power.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Straight Blade Plug Connection Orientation Straight Current Rating 15 A Horsepower Rating 1/2 hp Housing Color Clear IP Rating Not Rated NEMA Plug Configuration 5-15P Number of Blades 3 Number of Poles 2 Phase Single Polarized Yes Resistance Properties Corrosion Resistant Impact Resistant Moisture Resistant Voltage Rating 125V AC Wire Connection Type Screw Terminals Wiring Style Standard For Maximum Cable Diameter 0.655 in For Minimum Cable Diameter 0.3 in Grade Hospital GradeUlasan Produk
