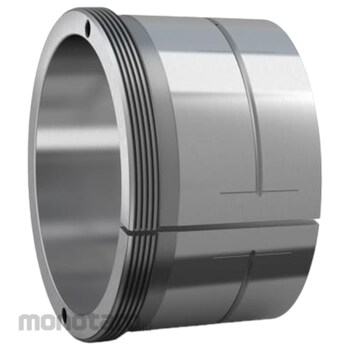

SKF Withdrawal Sleeve
#Grup produk P109968360
Spesifikasi
| Bore Diameter (mm) | 220 |
|---|---|
| Width (mm) | 116 |
| Thread Designation | Tr260x4 |
| Taper | 1:12 |
| Holes for Oil Injection | With |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AOH(X) sleeve has dimensions in accordance with ISO standards and are designed for oil injection mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.
Feature
- Cost effective- Good mounting and dismounting control
- Less manual effort
- Greater operator safety
