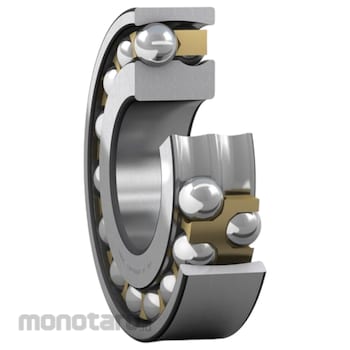

SKF Self-Aligning Ball Bearing EM/C3 Type
#Grup produk P109967769
Spesifikasi
| Bore Diameter (mm) | 45 |
|---|---|
| Outside Diameter (mm) | 100 |
| Width (mm) | 36 |
| Basic Dynamic Load Rating (kN) | 63.7 |
| Basic Static Load Rating (kN) | 19.3 |
| Bearing Material | Bearing Steel |
| Bore Type | Cylindrical |
| Cage | Machined Metal |
| Coating | Without |
| Limiting Speed (rpm) | 9000 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Number of Rows | 2 |
| Radial Internal Clearance | C3 |
| Reference Speed (rpm) | 13000 |
| Relubrication Feature | Without |
| Retaining Feature, Inner Ring | None |
| Sealing | Without |
| Tolerance Class | Normal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Feature
- Accommodate static and dynamic misalignment- Excellent high-speed performance
- Excellent light load performance
- Low friction
