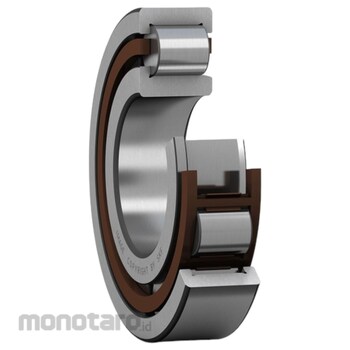

SKF NJ ECP/C4 Type Single Row Cylindrical Roller Bearing
#Grup produk P109967565
Spesifikasi
| Bore Diameter (mm) | 25 |
|---|---|
| Outside Diameter (mm) | 62 |
| Width (mm) | 17 |
| Basic Dynamic Load Rating (kN) | 46.5 |
| Basic Static Load Rating (kN) | 36.5 |
| Bearing Part | Complete Bearing |
| Bore Type | Cylindrical |
| Cage | Non-metallic |
| Coating | Without |
| Limiting Speed (rpm) | 15000 |
| Locating Feature, Bearing Outer Ring | None |
| Loose Flange | None |
| Lubricant | None |
| Number of Flanges, Inner Ring | 1 |
| Number of Flanges, Outer Ring | 2 |
| Radial Internal Clearance | C4 |
| Reference Speed (rpm) | 12000 |
| SKF Performance Class | SKF Explorer |
| Sealing | Without |
| Tolerance Class | Normal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Feature
- High radial load carrying capacity- Low friction
- Long service life
- Locate the shaft axially in one direction
- Separable design
