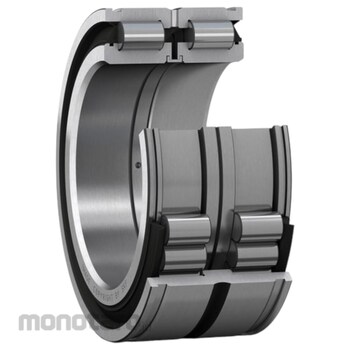

SKF Double Row Full Complement Cylindrical Roller Bearing
#Grup produk P109967361
Spesifikasi
| Bore Diameter (mm) | 150 |
|---|---|
| Outside Diameter (mm) | 225 |
| Width (mm) | 100 |
| Basic Dynamic Load Rating (kN) | 748 |
| Basic Static Load Rating (kN) | 1290 |
| Bearing Part | Complete Bearing |
| Bore Type | Cylindrical |
| Cage | Without |
| Coating | Without |
| Limiting Speed (rpm) | 560 |
| Locating Feature, Bearing Outer Ring | Snap ring groove |
| Loose Flange | None |
| Lubricant | None |
| Number of Flanges, Inner Ring | 2 |
| Number of Flanges, Outer Ring | 1 |
| Radial Internal Clearance | CN |
| Sealing | Seal on both sides |
| Tolerance Class | Normal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
Feature
- Very high radial load carrying capacity- High radial stiffness
- Long service life
- Locate the shaft axially in both directions
- Sealed for increased reliability, with relubrication feature
