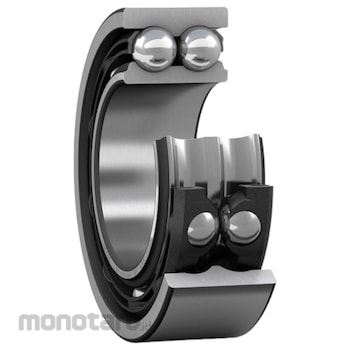

SKF Double Row Angular Contact Ball Bearing ATN9/C3 Type
#Grup produk P109967185
Spesifikasi
| Bore Diameter (mm) | 10 |
|---|---|
| Outside Diameter (mm) | 30 |
| Width (mm) | 14 |
| Contact Angle (°) | 30 |
| Basic Dynamic Load Rating (kN) | 7.61 |
| Basic Static Load Rating (kN) | 4.3 |
| Arrangement of Contact Angle (double-row bearing) | Back-to-back (O) |
| Axial Internal Clearance | C3 |
| Bearing Material | Bearing Steel |
| Cage | Non-metallic |
| Coating | Without |
| Contact Type | Normal contact (two-point contact) |
| Limiting Speed (rpm) | 24000 |
| Locating Feature, Bearing Outer Ring | None |
| Matched Arrangement | No |
| Number of Rows | 2 |
| Reference Speed (rpm) | 26000 |
| Ring Type | One-piece inner and outer rings |
| Sealing | Without |
| Universal Matching Bearing | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
Feature
- High-speed capability- Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
- Suitable where a stiff bearing arrangement is required
- Require less axial space than equivalent pair of single row angular contact ball bearings
