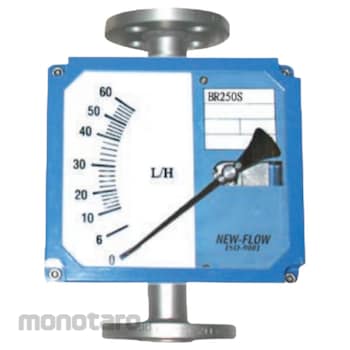

NEW FLOW Metal Tube Flow Meter
#Grup produk P109966362
Spesifikasi
| Case Material | Aluminium Alloy case with paint, SS316 available |
|---|---|
| Body Wetted Parts Material | SS316 |
| Lens Material | Safety Glass |
| Flow Rates For Water (L/hour) | 30 up to 400000 |
| Flow Rates For Air (N m�/hour) | 0.8 up to 1200 |
| Connection Type | Thread type, flange type |
| Accuracy | ±2.5% F.S (±2.0% F.S option) |
| Connection Size (inch) | 1/4 to 8 |
| LCD Display Power Supply (V) | 24 DC |
| Maximum Pressure (kg/m²) | 40 (standard); option up to 100 |
| Mounting | Vertical and horizontal available |
| Mounting Length (mm) | 250 Standard For Size 4inch To 4inch, 300 Standard For Size 5inch To 10inch |
| Protection Class | Weatherproof IP66/IP68 or explosion-proof available |
| Working Temperature (°C) | -50 to 200 (standard) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
for high flows of gas, liquid, steam and oil
