The New-Flow DPG3500 Digital Pressure Gauge is designed to handle any applications by measuring air, liquid, and oil pressure.
DPG3500 uses the most updated temperature compensation technology.
The superior pressure meter is equipped with a variety of functions such as unit selection, zero adjustment, and a guarantee to long battery life, so it can be used for a variety of industrial and commercial applications without replacing the battery for 3 years typically.

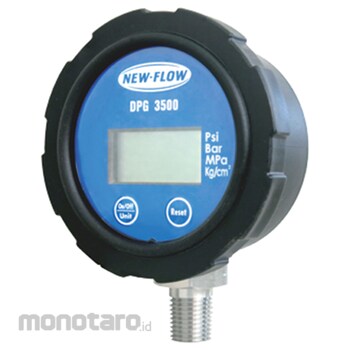

NEW FLOW Digital Pressure Gauge
#Grup produk P109966308
Spesifikasi
| Type | Weather proof |
|---|---|
| Pressure Range (psi) | 1000 |
| Connection Port (inch) | 1/4 NPT male, standard |
| Size (inch) | 5 |
| Power Supply | Lithium battery CR123A (3.0V, 1400mAh) |
| Sample Rate (s) | 1.2 Max. |
| Accuracy | ±1.0% F.S. (@25±3°C) |
| Battery Life | Without Backlight: 3 years for continuous operation; Using Backlight: for 5 seconds (3 times per day) 1.5 years for continuous operation |
| Burst Pressure (times) | 2 of F.S. |
| Measure Media | Gas and Liquid (compatible with wetted parts material SS316L) |
| Resolution | 1/1500 maximum |
| Wetted Parts Material | SS316L |
| Working Humidity | 35-85% RH |
| Working Temperature (°C) | -10 to 60 |
