Excellent corrosion resistance, chemical resistance, and abrasion resistance.
The body is transparent, so you can see the flow of fluid inside.
The screen can be easily cleaned, disassembled for replacement, and assembled.

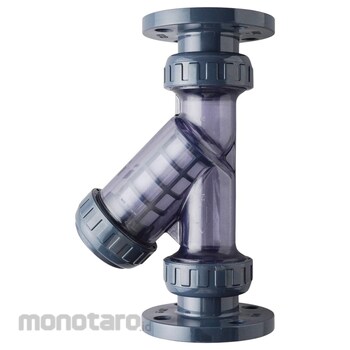

Asahi AV Flexible strainer Y Type Flange Type
#Grup produk P109966043
Spesifikasi
| Connection | Flange Type |
|---|---|
| Material | U-PVC |
| Shape | Y shape |
| Diaphragm Material | EPDM |
| Dimension D (mm) | Φ155 |
| Dimension H (mm) | 190 |
| Dimensions c (mm) | 120 |
| Dimensions d (mm) | Φ51 |
| Dimensions d1 (mm) | 106 phi |
| Dimensions h (mm) | 19 |
| Dimensions h1 (mm) | 160 |
| Fluid Temperature (°C) | 0-50 |
| Kinds | Strainer |
| Material (O-ring) | EPDM |
| Maximum Allowable Pressure (MPa) | 1 |
| Maximum Allowable Pressure (kgf/cm²) | 10.2 |
| Mesh | 40 |
| Nominal Diameter A | 50 |
| Nominal Diameter B | 2 |
| Pipe Flange Name | 50A(2B) |
| Standard | JIS10K |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fitur
Attribute :Dimensions L (mm) : 361
Dimensions n (mm) : Four
Dimensions t(mm) : 16
