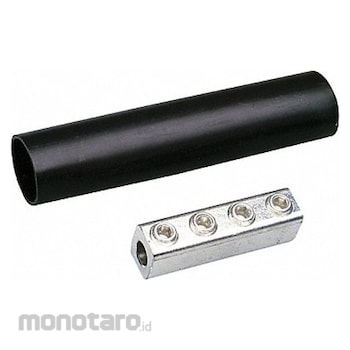

BURNDY Wire Splicing & Weatherproofing Kit
#Grup produk P109959344
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Body Finish | Tin Plated |
| Body Material | Aluminium |
| Color | Black |
| Compatible with Product Type | Motor Connections; Pool Wiring; Power Cables |
| Contact Finish | Tin |
| Contact Material | Aluminium |
| Container Type | Plastic Clam Shell |
| For Conductor Material | Aluminium, Copper |
| For Conductor Type | Aluminium, Copper |
| For Max. Cable Outer Diameter (inch) | 0.94 |
| For Wire Type | Aluminium Wire, Copper Wire |
| Heat Shrink Material | Cross-Linked Polyolefin |
| Material | Aluminium |
| Max. Wire Size (kcmil) | 250 |
| Maximum Operating Temperature (°F) | 194 |
| Maximum Voltage (V) | 600 |
| Min. Wire Size (AWG) | 1 |
| Minimum Operating Temperature (°F) | 32 |
| Overall Length (inch) | 5 |
| Resistance Properties | Corrosion-Resistant |
| RohS Compliant | Yes |
| Screw Finish | Tin Plated |
| Screw Material | Aluminium |
| Standards | CSA Certified; UL 468A-468B; UL Listed |
| Termination Style | Heat Shrink |
| Wall Type | Heavy Wall |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Heat shrink splice kits seal around conductors with or without mechanical connectors to create an airtight hold that protects in-line and pigtail connections from water and corrosion damage. These kits require heat guns or other open-flame heating devices for installation and may not be suitable for enclosed or combustive environments.
Feature
Splice Kit Body Finish Tin Plated Body Material Aluminum Contact Finish Tin Contact Material Aluminum Color Black Compatible with Product Type Motor Connections Pool Wiring Power Cables Container Type Plastic Clam Shell For Conductor Material Aluminum Copper For Maximum Cable OD 0.94 in For Wire Type Aluminum Wire Copper Wire Heat Shrink Material Cross-Linked Polyolefin Includes (4) 5/16 in Hex Screws Minimum Operating Temperature 32 Degrees FUlasan Produk
