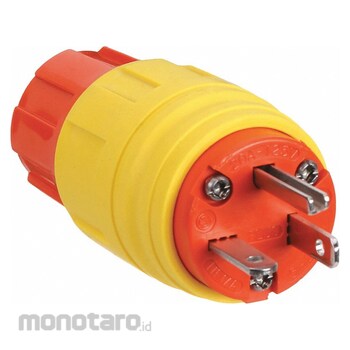

ERICSON Watertight Straight-Blade Plug
#Grup produk P109953207
Spesifikasi
| UNSPSC | 39121402 |
|---|---|
| Connection Orientation | Straight |
| For Environment | Washdown |
| For Max. Cable Diameter (inch) | 0.625 |
| For Min. Cable Diameter (inch) | 0.3 |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| IP Rating | IP69K |
| Insulation Material | Thermoplastic Elastomer |
| Number of Blades | 3 |
| Number of Poles | 2 |
| Phase | Single |
| Resistance Properties | Antimicrobial; Watertight |
| Standards | CSA Certified C22.2 No. 42 File 31943; NSF/ANSI/3-A 14159-1; UL Listed to ANSI/UL 498 File E17740 |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs have terminations with screws that tighten down on conductors to secure and disconnect them. They make inline connections with receptacles and connectors to transfer power.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Watertight Straight Blade Plug Connection Orientation Straight Current Rating 20 A Horsepower Rating 1 hp Housing Color Yellow IP Rating IP69K NEMA Plug Configuration 5-20P Number of Blades 3 Number of Poles 2 Phase Single Resistance Properties Antimicrobial Watertight Voltage Rating 125V AC Wiring Style Standard For Maximum Cable Diameter 0.625 in For Minimum Cable Diameter 0.3 in Grade Industrial Housing Material Thermoplastic ElastomerUlasan Produk
