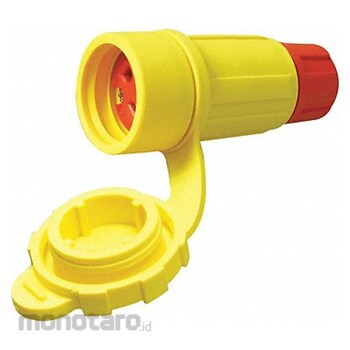

ERICSON Watertight Straight-Blade Connector
#Grup produk P109953146
Spesifikasi
| UNSPSC | 39121421 |
|---|---|
| For Environment | Washdown |
| For Max. Cable Diameter (inch) | 0.625 |
| For Min. Cable Diameter (inch) | 0.3 |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| IP Rating | IP65; IP66; IP67 |
| Number of Poles | 2 |
| Number of wires | 3 |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Antimicrobial; Corrosion Resistant |
| Standards | CSA Certified C22.2 No. 42 File 31943; NSF/ANSI/3-A 14159-1; UL Listed to ANSI/UL 498 File E17740 |
| Voltage Rating (V) | 125 (AC) |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These connectors have terminations with screws that tighten down on conductors to secure and disconnect them. They make inline connections with plugs and inlets to transfer power.
Feature
Watertight Straight Blade Connector Current Rating 20 A Housing Color Yellow NEMA Receptacle Configuration 5-20R Number of Poles 2 Number of Wires 3 Phase Single Resistance Properties Antimicrobial Corrosion Resistant Voltage Rating 125V AC For Maximum Cable Diameter 0.63 in For Minimum Cable Diameter 0.3 in Grade Industrial Horsepower Rating 1 hp Housing Material Thermoplastic Elastomer IP Rating IP65 IP66 IP67 Market Industrial Power Indicating Light NoUlasan Produk
