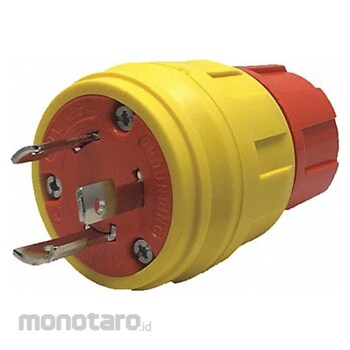

ERICSON Watertight Locking-Blade Plug
#Grup produk P109952828
Spesifikasi
| UNSPSC | 39121403 |
|---|---|
| For Environment | Washdown |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| IP Rating | IP69K |
| Market | Industrial |
| Shrouded | Yes |
| Standards | ANSI/UL 498 File E17740; CSA Certified C22.2 No. 42; NSF/ANSI/3-A 14159-1 |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs have shrouds that extend around their opening to cover the pin terminals, deter touch with live currents, and protect against impacts and abrasion. They only mate with compatible shrouded connectors and receptacles. These plugs have screw terminations that tighten down on conductors to secure them.
Feature
Watertight Locking Plug Current Rating 30 A Housing Color Yellow Housing Material Thermoplastic Elastomer NEMA Plug Configuration L14-30P Number of Blades 4 Number of Poles 3 Phase Single Resistance Properties Antimicrobial Corrosion Resistant Voltage Rating 125/250V AC Wiring Style Standard For Maximum Cable Diameter 0.93 in For Minimum Cable Diameter 0.64 in Grade Industrial Horsepower Rating 2 hp IP Rating IP69K Market Industrial Shrouded YesUlasan Produk
