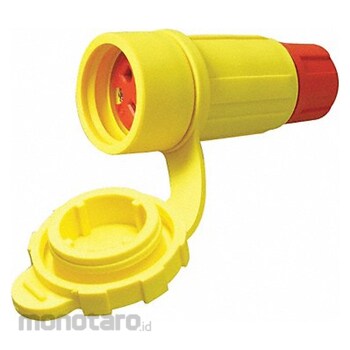

ERICSON Watertight Locking-Blade Connector
#Grup produk P109952509
Sebelum PPN:
Rp2.799.900 - Rp3.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121421 |
|---|---|
| For Environment | Washdown |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| IP Rating | IP69K |
| Insulation Material | Thermoplastic |
| Market | Industrial |
| Midget Locking | No |
| NEMA Enclosure Rating | 4; 4X; 6; 6P; 12 |
| Resistance Properties | Antimicrobial |
| Shrouded | Yes |
| Standards | CSA Certified C22.2 No. 42 File 31943; NSF/ANSI/3-A 14159-1; UL Listed to ANSI/UL 498 File E17740 |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These connectors have terminations with screws that tighten down on conductors to secure and disconnect them.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Watertight Locking Connector Current Rating 30 A Housing Color Yellow Housing Material Thermoplastic Elastomer IP Rating IP69K NEMA Receptacle Configuration L6-30R Number of Poles 2 Number of Wires 3 Phase Three Resistance Properties Antimicrobial Shrouded Yes Voltage Rating 250V AC Wiring Style Standard For Maximum Cable Diameter 0.72 in For Minimum Cable Diameter 0.47 in Grade Industrial Horsepower Rating 2 hp Market Industrial Midget Locking NoUlasan Produk
