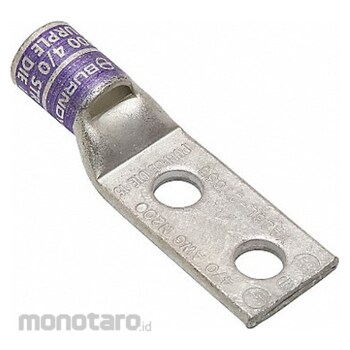

BURNDY Two-Hole Compression Lug
#Grup produk P109935885
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Max. Voltage (kV) | 35 AC |
| Maximum Operating Temperature (°F) | 194 |
| Number of Holes | 2 |
| RohS Compliant | Yes |
| Standards | CSA Certified; UL 486A-486B; UL Listed |
| Termination Style | Crimp |
| Tongue Angle | Straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Two-hole compression lugs secure onto studs or bolts to provide connections between power or ground sources and connection points.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Two-Hole Lug Compression Connector Barrel Size Long Color Code Red Die Code 18 324 Tongue Angle Straight Tongue Width 1.29 in For Conductor Material Copper For Stud Size 3/8 in For Stranded Copper Wire Size - Minimum 350 kcmil For Stranded Copper Wire Size - Maximum 350 kcmil Inspection Hole No Hole Center to Center 1 in Material Copper Maximum Operating Temperature 194 Degrees F Maximum Voltage 35 kV AC Termination Style Crimp Standards CSA Certified UL 486A-486B UL ListedUlasan Produk
