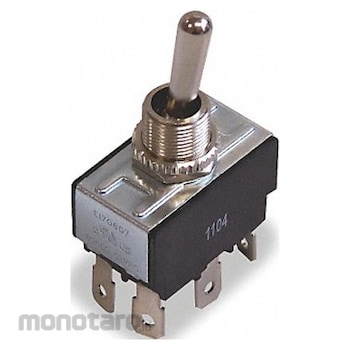

Ideal Toggle Switch
#Grup produk P109923039
Spesifikasi
| UNSPSC | 39121507 |
|---|---|
| AC Contact Rating (A) | 10 @250V AC; 20 @125V AC |
| Actuator Color | Silver |
| Actuator Length (inch) | 0.75 |
| Actuator Style | Bat |
| Mounting Hole (inch) | 0.5 |
| Operating Temperature Range (°F) | 32 to 185 |
| Recommended Use | Power Tool and Motor Control Switch Applications |
| Standards | UL Recognized/CSA |
| Stem Color | Silver |
| Stem Length (inch) | 0.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Toggle Switch Contact Form SPDT Number of Connections 3 Switch Function On/Off/Momentary On AC Contact Rating 10A @ 250V AC 20A @ 125V AC HP 3/4 hp Terminals Screw Mounting Hole 0.50 in dia Actuator Style Bat Actuator Length 0.75 in Stem Length 0.5 in Stem Dia and Thread Size 15/32-32 NS-2B Operating Temp Range 32 Degrees to 185 Degrees F Actuator Color Silver Stem Color Silver Special Features Factory Tested 100 00 Cycles to 21A @ 14.8V DC Standards UL Recognized/CSAUlasan Produk
