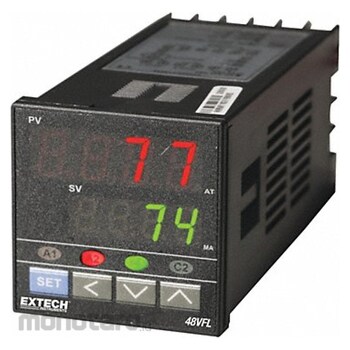

Extech Temperature Controller
#Grup produk P109920573
Sebelum PPN:
Rp7.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112205 |
|---|---|
| Alarms | Two 'Latching' Alarm relays standard with 8 Alarm modes |
| Control Mode | Fuzzy Logic Enhanced Three-term PID with Auto Tune; Proportional Band; Derivative Time; Hysteresis; Cycle Time |
| Control Period | Proportional Band 0 to 300.0%; Integral time 0 to 3600 seconds; Derivative time 0 to 900 seconds; Hysteresis 0.0 to 200.0 or 0.0 to 2000; Cycle time 1 to 100 second |
| Digital/Analog | Digital |
| Hysteresis | 0.0 to 200.0 or 0.0 to 2000 |
| Proportional Band | 0 to 300.0% |
| Sensor Type | Thermocouple and RTD |
| Setting Accuracy | Thermocouple: 1.8 deg F; RTD: 0.36 deg F |
| Temperature Range (°F) | -58 to 3272 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
EXTECH temperature controllers are low-voltage controllers used to protect heaters from cold starts, and eliminate overshoot, unwanted process fluctuation, and drift.
Feature
Temperature Controller Digital Thermocouple and RTD Sensor Type DIN Size 1/4 Input Voltage 1 to 5V DC Switch Function SPST NO Output (2) Relay Temp Range -58 Degrees to 3272 Degrees F Control Mode Fuzzy Logic Enhanced Three-term PID with Auto Tune Proportional Band Derivative Time Hysteresis Cycle Time 5 Amps Length 3.62 in Width 3.62 in Depth 3.15 inUlasan Produk
