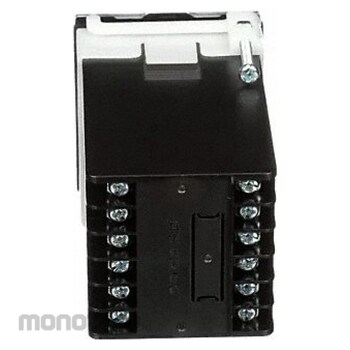

RED LION Temperature Controller
#Grup produk P109920537
Sebelum PPN:
Rp7.799.900 - Rp9.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121549 |
|---|---|
| Alarms | 2 Relay Alarm Form A or Form C |
| Amps AC (mA) | 0 to 25 |
| Control Mode | PID |
| Control Period (msec) | 100 |
| DIN Size | 1/16 |
| Depth (inch) | 3.4 |
| Digital/Analog | Analog |
| Hysteresis | Programmable |
| Input Voltage (V) | 100 to 240 (AC) |
| Length (inch) | 1.89 |
| Power Consumption (V/A) | 5 |
| Proportional Band | 0 to 9999% |
| Sensor Type | B; E; J; K; L; N; R; RTD; S; T; TXK; U |
| Setting Accuracy | +/-0.3% of Span, +1°C @ 25°C |
| Standards | CE Approved; Emission CISPR 11 Class A; EN 61010-1; EN 61326-1 Immunity to Industrial Locations; RoHS Compliant; UL File E179259 |
| Temperature Range | Dependent on Sensor Type |
| Width (inch) | 1.89 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
PID Temperature Controller Analog B E J K L N R RTD S T TXK U Sensor Type DIN Size 1/16 Input Voltage 100 to 240V AC Output (2) Relay Temp Range Dependent on Sensor Type Control Mode PID 0 to 25mA AC Amps Length 1.89 in Width 1.89 in Depth 3.4 in Control Period 100 msec 2nd Analog Input 2nd Analog Output Current Transducer (CT) Input Dual Relay Alarms Full PID Control Ramp/Soak Capability Universal Inputs Hysteresis ProgrammableUlasan Produk
