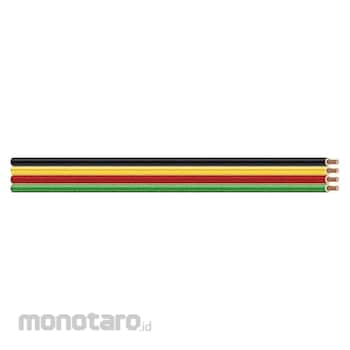

SOUTHWIRE Submersible Pump Wire
#Grup produk P109916677
Spesifikasi
| UNSPSC | 26121629 |
|---|---|
| Conductor Material | Copper |
| Insulation Material | PVC |
| Length (ft) | 500 |
| Nominal Outside Diameter (inch) | 0.93 |
| Number of Conductors | 3 with Insulated CU Ground |
| Standards | UL |
| Temperature Rating (°F) | -4 to 167 |
| Trade Designation | THW |
| Voltage (V) | 600 |
| Wire Color | Black; Green; Red; Yellow |
| Wire Size (AWG) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flat submersible pump wire is a multiconductor cable that is commonly used to supply power to a submersible pump located in open rock or an uncased well. A jacket covers the insulated conductors, which provides more protection than twisted pump wire in places where abrasion is likely to occur. Flat pump wire is also more flexible, making it easier to install and use.
Feature
Flat Submersible Pump Cable Number of Conductors 3 with Insulated CU Ground Wire Size 10 AWG Trade Designation THW Insulation Material PVC Wire Color Black Green Red Yellow Length 500 ft Voltage 600 V Conductor Material Copper Nominal Outside Dia 0.93 in Temp Rating -4 Degrees to 167 Degrees FUlasan Produk
