CLEVELAND Step Drill Bit
#Grup produk P109914758
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Decimal Equivalent | 0.125; 0.1562; 0.1875; 0.2187; 0.25; 0.2812; 0.3125; 0.3437; 0.375; 0.4062; 0.4375; 0.4687; 0.5 |
| Drill Bit Sizes Included (inch) | 1/8; 5/32; 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 13/32; 7/16; 15/32; 1/2 |
| Finish - Machining | TiN |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth (inch) | 3/32 |
| Maximum Hole Size (inch) | 1/2 |
| Measurement System | Fractional Inch |
| Min. Hole Size (inch) | 1/8 |
| Number Hole Sizes | 13 |
| Overall Length (inch) | 3 1/8 |
| Primary Material Application | Sheet Metal |
| Series | 1874-TN |
| Shank Diameter (inch) | 1/4 |
| Shank Hex Size (inch) | 1/4 |
| Shank Length (inch) | 3 1/8 |
| Shank Type - Machining | Hex |
| Step Increments (inch) | 1/32 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

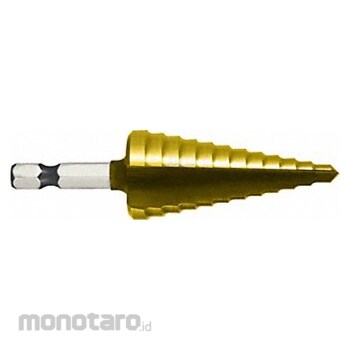

Hex-shank impact-rated step drill bits feature a hex shank and install into impact drills with standard three-jaw chucks. They are also known as impact step bits. These cone-shaped bits have steps of increasing diameter marked along their cutting head. As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole. The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Step Drill High Speed Steel TiN 1/8 in to 1/2 in Size Range Hex 1/4 in Shank Hex Size 1/4 in Shank Diameter 3 1/8 in Overall Length Maximum Drilling Depth 3/32 inUlasan Produk
