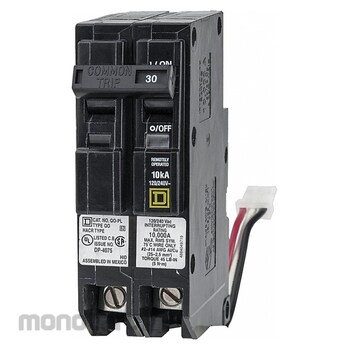

Schneider Electric Square D Miniature Circuit Breaker for Panelboard and Load Center
#Grup produk P109912741
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 120/240 |
| Amps (A) | 30 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | PowerLink |
| Compatible Panelboard/Load Center Series | QO |
| Depth (inch) | 2.91 |
| For use with | Mfr. No. EER260LLCR |
| Length (inch) | 4.55 |
| Max. AIR Rating (kA) | 10 at 120/240V AC |
| Max. Wire Size (AWG) | 2 |
| Min. Wire Size (AWG) | 12 |
| Number of Poles | 2 |
| Phase | Single |
| Series | QO |
| Standards | UL Listed |
| Terminal Connection | Lug |
| Width (inch) | 1.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Miniature Circuit Breaker Amps 30 A AC Voltage Rating 120/240V AC Circuit Breaker Type PowerLink Number of Poles 2 DC Voltage Rating Not Rated Circuit Breaker Actuator Paddle Circuit Breaker Mounting Style Plug In Compatible Panelboard/Load Center Series QO Phase Single Series QO Max AIR Rating 10kA at 120/240V AC For Use With Mfr No EER260LLCR Terminal Connection Lug Length 4.55 in Width 1.5 in Depth 2.91 in Min Wire Size 12 AWG Max Wire Size 2 AWGDokumentasi Produk
