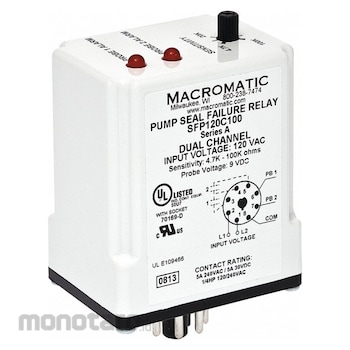

MACROMATIC Seal-Leakage Monitoring Relay
#Grup produk P109895417
Sebelum PPN:
Rp2.099.900 - Rp2.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121517 |
|---|---|
| Adjustment Method | Rotary Knob |
| Body Depth (inch) | 2.9 |
| Body Height (inch) | 2.33 |
| Body Width (inch) | 1.71 |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| Frequency (Hz) | 50/60 |
| Input Voltage (V) | 120 (AC) |
| Maximum Seal Leak Resistance (ohm) | 100000 |
| Mechanical Operating Durability | 10000000 |
| Minimum Seal Leak Resistance (ohm) | 4700 |
| Number of Pins/Terminals | 8 |
| Power Consumption (V/A) | 3 |
| Relay Function | Seal Leakage |
| Relay Mounting Style | Socket |
| Response Time (s) | 1 |
| Socket Code | A |
| Standards | CE; cULus; cURus; UL Listed |
| Status indicator | LED Indicator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These relays have pins that plug into relay sockets to make quick electrical connections with circuits. They don't require tools for removal or installation and are ideal for applications where relays are changed periodically.
Feature
Pump Seal Failure Relay Contact Form SPST-NO Current Rating 5 A Electrical Connection 8-Pin Terminal Input Voltage 120V AC Number of Channels Dual Channel Number of Pins 8 Relay Function Seal Leakage Seal Leak Minimum Resistance 4 700 ohm Seal Leak Maximum Resistance 100 000 ohm Status Indicator LED Indicator Contact Rating (AC) 5 A @ 240V Contact Rating (DC) 5 A @ 28V Mounting Style Plug-In Adjustment Method Rotary Knob Base Shape Octal Body Depth 2.9 in Body Height 2.33 inUlasan Produk
