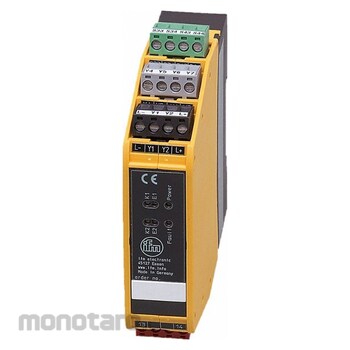

IFM Safety-Monitoring Relay
#Grup produk P109883087
Spesifikasi
| UNSPSC | 39121501 |
|---|---|
| Body Depth (inch) | 4.13 |
| Body Height (inch) | 3.94 |
| Body Width (inch) | 0.98 |
| Contact Form | DPST-NO |
| Contact Rating (AC) (A) | 6 @250V |
| Contact Rating (DC) (A) | 6 @24V |
| Delay Time (s) | 6 |
| Delay Type | Fixed |
| Electrical Connection Type | Screw |
| Environmental Protection | Finger-Safe |
| For use with | Emergency Stop; Limit Switch; Two Hand Control |
| IP Rating | IP20 |
| Input Voltage (V) | 24 (DC) |
| Maximum Operating Temperature (°F) | 131 |
| Minimum Operating Temperature (°F) | -13 |
| Number of Inputs | 1 |
| Number of Pins/Terminals | 16 |
| Output Switch Configuration | (2) NO Instantaneous |
| Power Consumption (W) | 1.2 |
| Relay Mounting Style | DIN-Rail |
| Response Time (msec) | 30 |
| Safety Reliability Data | PFHd [1/h] < 2.2E-09 |
| Standards | CE Certified; cULus Listed; TUV Certified |
| Status indicator | LED Indicator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These relays secure onto DIN-rails. They help save space and keep wires tidy in electrical enclosures, load centers, and equipment cabinet racks.
Feature
Safety Monitoring Relay Coil Resistance Not Applicable Contact Form DPST-NO Delay Time 6 sec Delay Type Fixed Electrical Connection Screw Terminal Terminal Block Removable IP Rating IP20 Input Voltage 24V DC Mounting Style DIN Rail Number of Inputs 1 Number of Pins 16 Output Switch Configuration (2) NO Instantaneous Response Time 30 msec Status Indicator LED Indicator Standards CE Certified cULus Listed TUV Certified Contact Rating (AC) 6 A @ 250V Contact Rating (DC) 6 A @ 24VUlasan Produk
