RIB Relay
#Grup produk P109872018
Spesifikasi
| UNSPSC | 39121515 |
|---|---|
| Body Depth (inch) | 1.8 |
| Body Height (inch) | 3.2 |
| Body Width (inch) | 2.3 |
| Coil Voltage (VAC) | 277 |
| Contact Form | SPDT |
| Contact Rating (AC) (A) | 10 @120/277V; 20 @277V |
| Current Rating (A) | 20 |
| Electrical Connection Type | Wire Lead |
| For use with | Exhaust Fans; Motors; Vacuums |
| Horsepower @ 120V AC (hp) | 1 |
| Lead Length (inch) | 16 |
| Maximum Operating Temperature (°F) | 140 |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature (°F) | -30 |
| NEMA Enclosure Rating | 1 |
| Nipple Size (inch) | 0.50 NPT |
| Relay Mounting Style | Surface |
| Response Time (msec) | 18 |
| Sealing | Enclosed |
| Standards | CE Certified; RoHS Compliant; UL 924; UL Listed |
| Status indicator | LED Indicator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

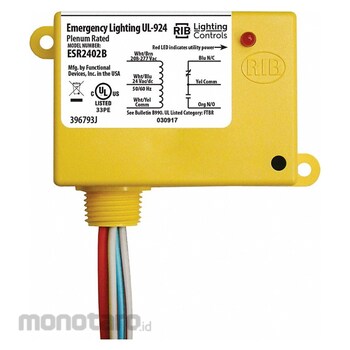

These emergency lighting bypass/shunt relays circumvent normal power connections if power is lost, and turn lights on with a secondary load source. These relays are often used to activate lighting in hallways, exits, entrances, and stairways.
Feature
Enclosed Pre-Wired Relay Coil Voltage 277V AC Contact Form SPDT Current Rating 20 A Mounting Style Surface Nipple Size 0.50 in NPT Contact Rating (AC) 10 A @ 120/277V 20 A @ 277V Input Voltage 208 to 277V AC/DC 24V AC NEMA Enclosure Rating 1 Body Depth 1.8 in Body Height 3.2 in Body Width 2.3 in Contact Material Silver Alloy For Use With Exhaust Fans Motors Vacuums Frequency 50/60 Hz Horsepower @ 120V AC 1 hp Lead Length 16 in Maximum Operating Temperature 140 Degrees FUlasan Produk
