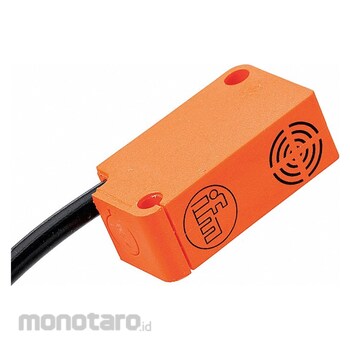

IFM Rectangular Proximity Sensor and Switch
#Grup produk P109871976
Spesifikasi
| UNSPSC | 41111926 |
|---|---|
| Case Material | PBT |
| Depth (mm) | 16 |
| IP Rating | 67 |
| Length (mm) | 28 |
| Max. Current Load (mA) | 200 |
| Max. Detecting Distance (mm) | 2 |
| Operating Temperature Range (°F) | -13 to 176 |
| Output mode | NO |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | 2m Cable |
| Proximity Sensor Frequency (Hz) | 800 |
| Proximity Sensor Output Circuit Type | PNP |
| Proximity Sensor Power Requirement (V) | 10 to 30 (DC) |
| Shielded / Unshielded | Shielded |
| Standards | CE Compliance; cUL Listed |
| Width (mm) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
IFM inductive rectangular proximity sensors are ideal for noncontact detection of metal targets in position sensing applications and part presence applications.
Feature
Rectangular Proximity Sensor Inductive Proximity Sensor Power Requirement 10 to 30V DC Shielded Proximity Sensor Operating Frequency 800 Hz Proximity Sensor Output Circuit Type PNP Max Detecting Distance 2 mm Proximity Sensor Electrical Connection 2m Cable Output Mode NO IP Rating 67 Case Material PBT Length 28 mm Width 10 mm Depth 16 mm Operating Temp Range -13 Degrees to 176 Degrees F Max Current Load 200mA Description/Special Features 1 Yellow LED for Output StateUlasan Produk
