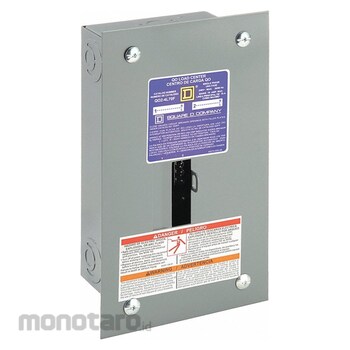

SQUARE D QO Load Center
#Grup produk P109866859
Sebelum PPN:
Rp1.499.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121101 |
|---|---|
| Circuit Breaker Type | QO |
| Color | Gray |
| For use with | Square D QO Circuit Breakers |
| Maximum Operating Temperature (°F) | 104 |
| Minimum Operating Temperature (°F) | 23 |
| Standards | RoHS Compliant; UL Listed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
Feature
Load Center Number of Spaces 2 Amps 70 A Voltage 120/240V AC Circuit Breaker Type QO Included Enclosure Cover Flush Cover Main Circuit Breaker or Main Lug Main Lug Max No of Tandem Breakers 2 Phase 1 Series QO Height 9.3 in Width 4.8 in Depth 3 1/4 in For Use With Square D QO Circuit Breakers Bus Material Tin Plated Aluminum Short Circuit Current Rating 65kA Enclosure NEMA Rating 1 Cover Attachment Style Screw On Cover Closure Method Lift-Off Recommended Flush Cover IncludedUlasan Produk
