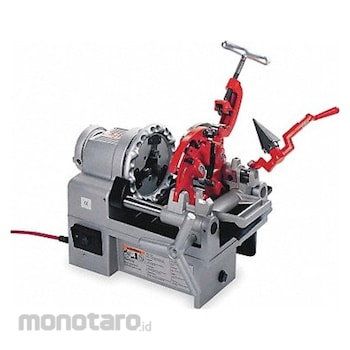

RIDGID Pipe Threading Machine
#Grup produk P109849719
Spesifikasi
| UNSPSC | 23171708 |
|---|---|
| Chuck Type | Manual |
| Current (A) | 24 |
| Die Head Sizes (inch) | 1/2 to 1 1/2 |
| Free Speed (rpm) | 44 |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1/2 |
| Housing Material | Aluminium |
| Kit Contents | Bare Tool |
| Machine Type | Stationary Power Threading Machine |
| Max. Bolt Size (inch) | 1 |
| Max. Pipe Diameter (inch) | 1 1/2 |
| Min. Bolt Size (inch) | 5/16 |
| Min. Pipe Diameter (inch) | 1/4 |
| Motor Type | Standard |
| Mount Type | Stand |
| No. of Die Heads | 1 |
| No. of Speeds | 1 |
| Oil Capacity (gal) | 0.4 |
| Overall Length (inch) | 25.5 |
| Overall Width (inch) | 14 |
| Phase | Single-Phase |
| Portability | Portable |
| Power Source | Corded |
| Pump Type | Self-Priming Constant Flow Gerotor |
| Reversible | No |
| Standards | CSA Certified; UL Listed |
| Switch Type | On/Off Heavy-Duty and Integral Foot Switch |
| Thread Type | NPT |
| Threading Equipment Included | (2) Die Sets; Cutter; Die Head |
| Through-the-Head Oiling | Yes |
| Voltage (V) | 120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Stationary pipe threaders offer features that speed production and ease operation compared to portable machines. They sit on a benchtop, stand, or other flat surface or may be placed on a compatible cart for repositioning or moving within a shop. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge.
Feature
Pipe Threading Machine Maximum Compatible Pipe Size 1 1/2 in Minimum Compatible Pipe Size 1/4 in Motor Type Standard Horsepower 1/2 hp Number of Speeds 1 Free Speed 44 RPM Tool Series 1215 Includes Cutter Assembly Nu-Clear Oil Quick-Open Right Hand NPT Die Head Voltage 120 V Phase Single-Phase Chuck Type Manual Through-the-Head Oiling Yes Thread Standard of Included Dies NPT Maximum Bolt Size 1 in Minimum Bolt Size 5/16 in Die Head Sizes 1/2 in to 1 1/2 in Current 24 AUlasan Produk
