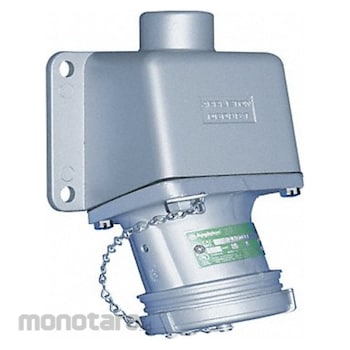

APPLETON ELECTRIC Pin & Sleeve Receptacle
#Grup produk P109847395
Spesifikasi
| UNSPSC | 39121406 |
|---|---|
| Cap Type | Screw-On Cap |
| Connection Orientation | 15° Elbow |
| Contact Material | Copper |
| Current Rating (A) | 30 |
| Face Diameter (inch) | 3.38 |
| Flange Height (inch) | 3.38 |
| Flange Width (inch) | 3.38 |
| Flange type | Flanged |
| For Max. Cable Diameter (inch) | 1.125 |
| For Min. Cable Diameter (inch) | 0.5 |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating (hp) | 20 |
| Housing Color | Gray |
| Housing Material | Copper-Free Aluminium |
| Includes Mounting Hardware | Yes |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Market | Industrial |
| Max. Wire Size (AWG) | 6 |
| Maximum Operating Temperature (°F) | 104 |
| Min. Wire Size (AWG) | 10 |
| Minimum Operating Temperature (°F) | -13 |
| Mounting Box Entry | Dead End; Feed Through |
| NEMA Enclosure Rating | 3; 3R; 4; 4X |
| Number of Gangs | 1 |
| Number of Poles | 4 |
| Number of wires | 4 |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | Yes |
| Shrouded | Yes |
| Standards | NEC/CEC |
| Voltage Rating (V) | 120/240/480/600 (AC) |
| Wire Connection Type | Screw Terminal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pin and sleeve receptacles have watertight constructions that protect their internal components from liquids, debris, and dust. They provide safe electrical connections when mated with compatible watertight devices in outdoor and wet applications like food processing plants, beverage manufacturing, agriculture machinery, and chemical processing plants.
Feature
Receptacle Current Rating 30 A Flange Type Flanged Grounding Style Style 1 IP Rating Not Rated NEMA Enclosure Rating 3 3R 4 4X Number of Gangs 1 Number of Poles 4 Number of Wires 4 Phase Single Shrouded Yes Voltage Rating 120/240/480/600V AC Cap Type Screw-On Cap Connection Orientation 15 Degrees Elbow Face Diameter 3.38 in Flange Diameter Not Applicable Flange Height 3.38 in Flange Width 3.38 in Grounding Grounded Horsepower Rating 20 hp Housing Color GrayUlasan Produk
