Schneider Electric Pendant Control Station
#Grup produk P109845397
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121512 |
|---|---|
| Contact Form | 1NC/1NO, 1NC/1NO |
| Depth (inch) | 2.94 |
| Height (inch) | 4.69 |
| Housing Color | Yellow |
| Housing Material | PET Polyester Blend; Polycarbonate |
| Hub (inch) | 1/2 (NPT) |
| Legend | Up/Down |
| Mechanical Interlock | Yes |
| NEMA Contact Rating Designation | B600/P600 |
| NEMA Rating | 1; 3; 3R; 4; 4X |
| Number of Operators | 2 |
| Number of Speeds | 1 |
| Standards | CE Marked; CSA C22.2 No.14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; UL 508 |
| Type of Operator | Push Button |
| Width (inch) | 2.19 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

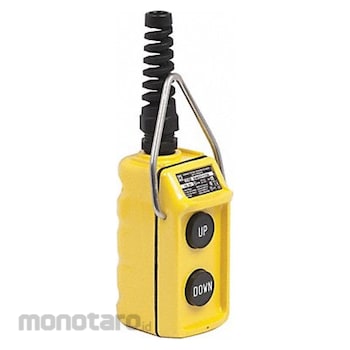

Control electric motor hoists and other machinery with these easy-to-use 2-operator pendant control stations.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Pendant Station Legend Up/Down Contact Form 1NC/1NO 1NC/1NO Mechanical Interlock Yes NEMA Rating 1 3 3R 4 4X Housing Color Yellow Hub 1/2 in NPT Number of Operators 2 Type of Operator Push Button Number of Speeds 1 NEMA Contact Rating Designation B600/P600 Height 4.69 in Width 2.19 in Depth 2.94 in Housing Material PET Polyester Blend Polycarbonate Standards CE Marked CSA C22.2 No.14 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508Dokumentasi Produk
