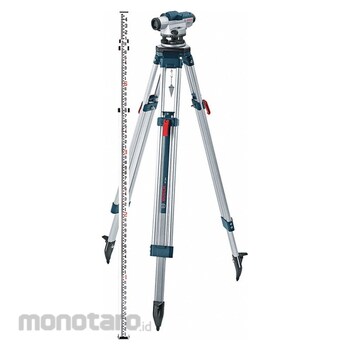

BOSCH Optical Level, Transit Level & Theodolite
#Grup produk P109841072
Kondisi Barang:
Spesifikasi
| UNSPSC | 27111802 |
|---|---|
| Accuracy (inch) | ±1/16 @ 100 ft |
| Aperture (mm) | 35 9/16 |
| Field of View | 1° @ 30 ft |
| Horizontal Graduations | 1° |
| Horizontal Range | 360° |
| IP Rating | IP54 |
| Leveling Type | Self-Leveling |
| Magnification | 32X |
| Material | Aluminium |
| Maximum Working Range (ft) | 400 |
| Minimum Focus Diameter (ft) | 4 |
| Number Of Lenses | 2 |
| Number of Level Vials | 1 |
| Number of Plumb Vials | 1 |
| Total Number of Vials | 1 |
| Tripod Height (Maximum) (inch) | 63 |
| Tripod Height (Minimum) (inch) | 38 |
| Tripod Thread Size (inch) | 5/8-11 |
| Vertical Range | 90° |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Optical levels focus their telescope on an object to measure height differences, estimate distances, and check alignments. Also known as dumpy levels, they are commonly used when excavating, landscaping, and setting foundations and concrete forms.
Feature
Automatic Level Kit Leveling Type Self-Leveling Magnification 32X Aperture 35 9/16 mm Working Range - Maximum 400 ft Field of View 1 Degrees @ 30 ft Horizontal Graduations 1 Degrees Focus Diameter - Minimum 4 ft Accuracy +/-1/16 in @ 100 ft Horizontal Range 360 Degrees Includes Grade Rod Tripod Case Plumb Bob Tool Kit Number of Lenses 2 Features Top Mount Quick Sight IP Rating IP54 Material Aluminum Number of Level Vials 1 Number of Plumb Vials 1 Overall Height 5 5/8 inDokumentasi Produk
