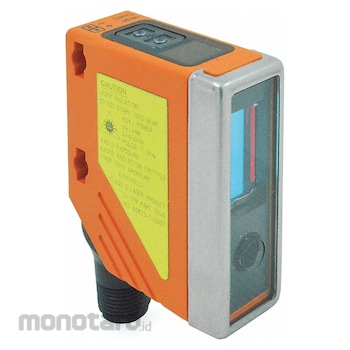

IFM Optical Distance Switch
#Grup produk P109841036
Sebelum PPN:
Rp5.099.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41111926 |
|---|---|
| Circuit Type | PNP |
| Electrical Connection | M12 Connector |
| IP Rating | 65; 67K |
| Max. Current Load (mA) | 0.02 |
| Measurement Range (m) | 0.03 to 2 |
| Operating Temperature Range (°C) | -25 to 60 |
| Output mode | NO/NC |
| Power Requirement (V) | 10 to 30 (DC) |
| Shielded / Unshielded | Unshielded |
| Standards | cULus |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These optical distance sensors can detect if an object has moved or turn off automatic doors or machines if a person enters the path of motion. They are often used in robotics to detect obstacles in the path of a moving object.
Feature
Rectangular Distance Sensor Measurement Range 0.03 to 2m Power Requirement 10 to 30V DC Circuit Type PNP Output Mode NO/NC Shielded / Unshielded Unshielded IP Rating 65 67K Electrical Connection M12 Connector Case Material Polyamide Length 56 mm Width 18.2 mm Depth 46.8 mm Operating Frequency 33 Hz Operating Temp Range -25 to 60 Degrees C Max Current Load 0.02 mA Standards cULusUlasan Produk
