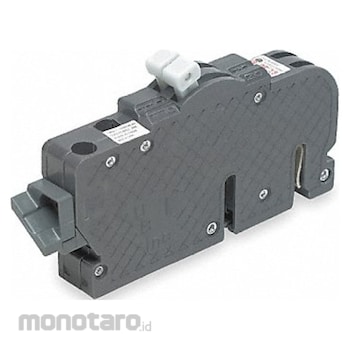

ZINSCO Obsolete Miniature Circuit Breaker for Panelboard & Load Center
#Grup produk P109838430
Sebelum PPN:
Rp1.099.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Compatible Panelboard/Load Center Series | ML12 |
| For use with | Zinsco Load Centers |
| Maximum Operating Temperature (°F) | 250 |
| Min. Wire Size (AWG) | 14 |
| Minimum Operating Temperature (°F) | 0 (Zero) |
| Phase | Single |
| Standards | ETL Listed; UL Listed |
| Terminal Connection | Lug |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These miniature circuit breakers plug or bolt into place in Zinsco load centers. They interrupt currents when faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Miniature Circuit Breaker Amps 30 A AC Voltage Rating 120V AC Circuit Breaker Type Standard Number of Poles 1 DC Voltage Rating Not Rated Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style Plug In Compatible Panelboard/Load Center Series ML12 Phase Single Series UBIZ Max AIR Rating 10kA at 120V AC For Use With Zinsco Load Centers Terminal Connection Lug Frame Size 125A/HACR Length 4.81 in Width 0.75 in Depth 2.53 in Min Operating Temp 0 Degrees FUlasan Produk
