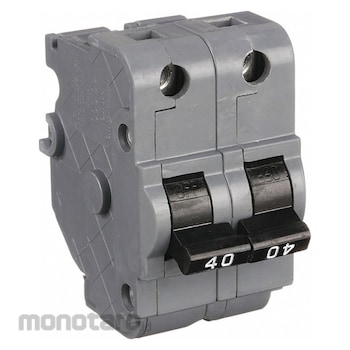

FEDERAL PACIFIC Obsolete Miniature Circuit Breaker for Panelboard & Load Center
#Grup produk P109838315
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/Load Center Series | X125-0816C |
| Depth (inch) | 2.55 |
| For use with | Federal Pacific Load Centers |
| Length (inch) | 3.36 |
| Maximum Operating Temperature (°F) | 250 |
| Minimum Operating Temperature (°F) | 0 (Zero) |
| Phase | Single |
| Standards | ETL Listed; UL Listed |
| Terminal Connection | Lug |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These miniature circuit breakers plug or bolt into place in Federal Pacific load centers. They interrupt currents when faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Feature
Miniature Circuit Breaker Amps 60 A AC Voltage Rating 120/240V AC Circuit Breaker Type Standard Number of Poles 2 DC Voltage Rating Not Rated Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style Plug In Compatible Panelboard/Load Center Series X125-0816C Phase Single Series UBIF Max AIR Rating 10kA at 120/240V AC For Use With Federal Pacific Load Centers Terminal Connection Lug Frame Size 70A/HACR Length 3.36 in Width 2 in Depth 2.55 inUlasan Produk
