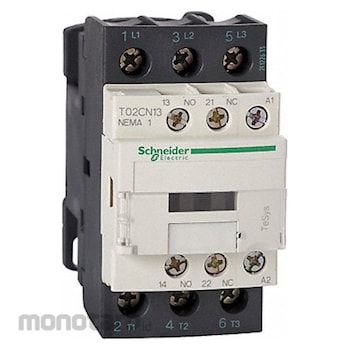

Schneider Electric NEMA Contactor
#Grup produk P109833152
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage (VAC) | 120 |
| Contactor Style | NEMA |
| Embedded Surge Suppressor - NEW | No |
| Frequency (Hz) | 50/60 |
| Full Load Current - Inductive (A) | 27 |
| Horsepower @ Single Phase - 120V AC (hp) | 2 |
| Horsepower @ Single Phase - 240V AC (hp) | 3 |
| Horsepower @ Three Phase - 208V AC (hp) | 7 1/2 |
| Horsepower @ Three Phase - 240V AC (hp) | 7 1/2 |
| Horsepower @ Three Phase - 480V AC (hp) | 10 |
| Horsepower @ Three Phase - 600V AC (hp) | 10 |
| Includes Auxiliary Contacts | Yes |
| Main Power Pole Contact Form | 3NO |
| Max. Voltage Rating (V) | 600 (AC) |
| NEMA Size | 1 |
| Nominal Coil Voltage @ 60Hz (V) | 120 (AC) |
| Number of Poles | 3 |
| Overall Depth (inch) | 3.66 |
| Overall Height (inch) | 3.34 |
| Overall Width (inch) | 1.76 |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Standards | CSA; UL Listed |
| Wire Termination Type | Screw Clamp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These NEMA contactors connect and disconnect power to motors, machinery, and other high-current equipment in a single direction. Contactors combine with overload relays to create motor load starters and provide overload protection. They can operate without overload relays but won't have protection from overcurrent. Compatible auxiliaries can be added to increase the functionality of contactors.
Feature
NEMA Magnetic Contactor Auxiliary Contact Form 1NO/1NC NEMA Enclosure Rating No Enclosure NEMA Size 1 Coil Voltage 120V AC Number of Poles 3 Full Load Current - Inductive 27 A Reversing Capability Non-Reversing Overall Height 3.34 in Overall Width 1.76 in Terminal Connection Type Screw Clamp Terminals Series TeSys N Number of Auxillary Contacts 2 Contactor Style NEMA Horsepower @ Three Phase - 240V AC 7 1/2 hp Horsepower @ Three Phase - 480V AC 10 hp Phase ThreeDokumentasi Produk
