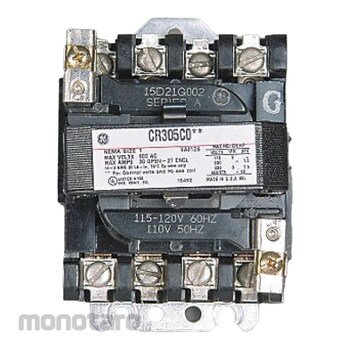

GE NEMA Contactor
#Grup produk P109833134
Sebelum PPN:
Rp9.899.900 - Rp33.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Auxiliary Contacts Included | 1NO |
| Coil Voltage (VAC) | 120 |
| Contactor Style | NEMA |
| Embedded Surge Suppressor - NEW | No |
| Frequency (Hz) | 50/60 |
| Includes Auxiliary Contacts | Yes |
| Main Power Pole Contact Form | 3NO |
| Max. Voltage Rating (V) | 600 (AC) |
| Nominal Coil Voltage @ 60Hz (V) | 120 (AC) |
| Number of Poles | 3 |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Standards | cULus; UL Listed; WEEE B2C/B2B |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These NEMA contactors connect and disconnect power to motors, machinery, and other high-current equipment in a single direction. Contactors combine with overload relays to create motor load starters and provide overload protection. They can operate without overload relays but won't have protection from overcurrent. Compatible auxiliaries can be added to increase the functionality of contactors.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
H2445 NEMA Magnetic Contactor Auxiliary Contact Form 1NO NEMA Enclosure Rating No Enclosure NEMA Size 1 Coil Voltage 120V AC Number of Poles 3 Full Load Current - Inductive 27 A Reversing Capability Non-Reversing Overall Height 3.94 in Overall Width 3.06 in Series CR305 Number of Auxillary Contacts 1 Contactor Style NEMA Horsepower @ Three Phase - 240V AC 7 1/2 hp Horsepower @ Three Phase - 480V AC 10 hp Phase Three Horsepower @ Three Phase - 600V AC 10 hpUlasan Produk
