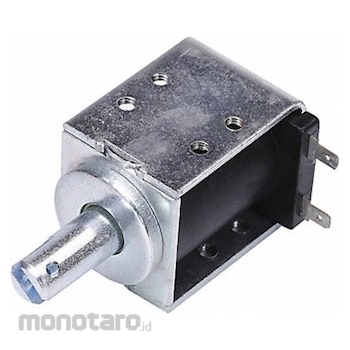

LEDEX Mechanical Solenoid
#Grup produk P109822873
Spesifikasi
| UNSPSC | 31251510 |
|---|---|
| Duty cycle | Continuous |
| Material of Construction | Steel |
| Stroke Range (inch) | 0 to 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Solenoids are designed to provide the mechanical movement of a plunger.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Solenoid AC Laminate Pull Type Stroke Range 0 to 1 in Pull Force Range 96.0 to 256.0 oz Width 2 1/2 in Depth 2 31/500 in Length 2 3/50 in Coil Volts 120V AC Seated Amps 0.48 A Seated Watts 19 W Coil Resistance 14.8 ohms Coil Insulation Class 155 Class F Terminals 1/4 in QC Amps @ Max Stroke 6.8 A Duty Cycle Continuous Max On Time 180 sec Material of Construction Steel Mounting Holes (4) slots .208 x .250 433/1000 in From Mounting Holes to Plunger Hole Standards RoHS ULUlasan Produk
