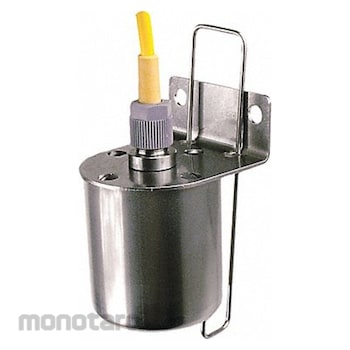

BARKSDALE Liquid Level Switch
#Grup produk P109813981
Spesifikasi
| UNSPSC | 39121531 |
|---|---|
| Body Material | Stainless Steel |
| Contact Form | SPST |
| Electrical Connections | Screw Clamp |
| Float Material | Polypropylene |
| Float Position | Below |
| Float Rod Angle | 90° |
| Float Specific Gravity | 0.8 |
| Float Travel (inch) | 1 1/4 |
| Height (inch) | 4.75 |
| Maximum Current (A) | 1 |
| Maximum Operating Temperature Range (°F) | 70 |
| Maximum Pressure (psi) | 45 |
| Maximum Voltage (V) | 230 |
| Mounting | Vertical Open Tank |
| NEMA Rating | 4 |
| Overall Length (inch) | 4.75 |
| Stem Length (inch) | 3.5 |
| Stem Material | Stainless Steel |
| Switch Function | Selectable |
| Tank Connection Size (inch) | 1 (NPT) |
| VA Rating | 40 |
| Width (inch) | 2.12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These switches use a float to detect the level of a liquid in a tank. They are suitable for starting and stopping pumps, opening and closing valves, and activating level alarms.
Feature
Liquid Level Switch Switch Function Selectable Vertical Open Tank Mounting Float Travel 1 1/4 in NEMA Rating 4 Tank Connection Size 1 in NPT Max Pressure 45 psi VA Rating 40 Operating Temp Range 70 Degrees F Max Overall Length 4.75 in Float Material Polypropylene Stem Material Stainless Steel Stem Length 3.5 in Height 4.75 in Width 2.12 in Contact Form SPST Max Current 1 A Max Voltage 230 V Body Material Stainless Steel Float Position Below Float Rod Angle 90 DegreesUlasan Produk
